Installing a Tonneau Cover
on your Herald or Sports 6 convertible

The pages below are taken from the Triumph Herald 1200 Owners Repair Manual; should you ever stumble across one of these, it's an invaluable resource! Click on either image to see it full-size. (Sorry, no HTML!)

NOTE: The special tool is readily available in most hardware stores, often packaged with a small supply of the same type of fasteners used on the tonneau cover. It is not essential, but the tool does make a quick and clean job of fitting the snaps.

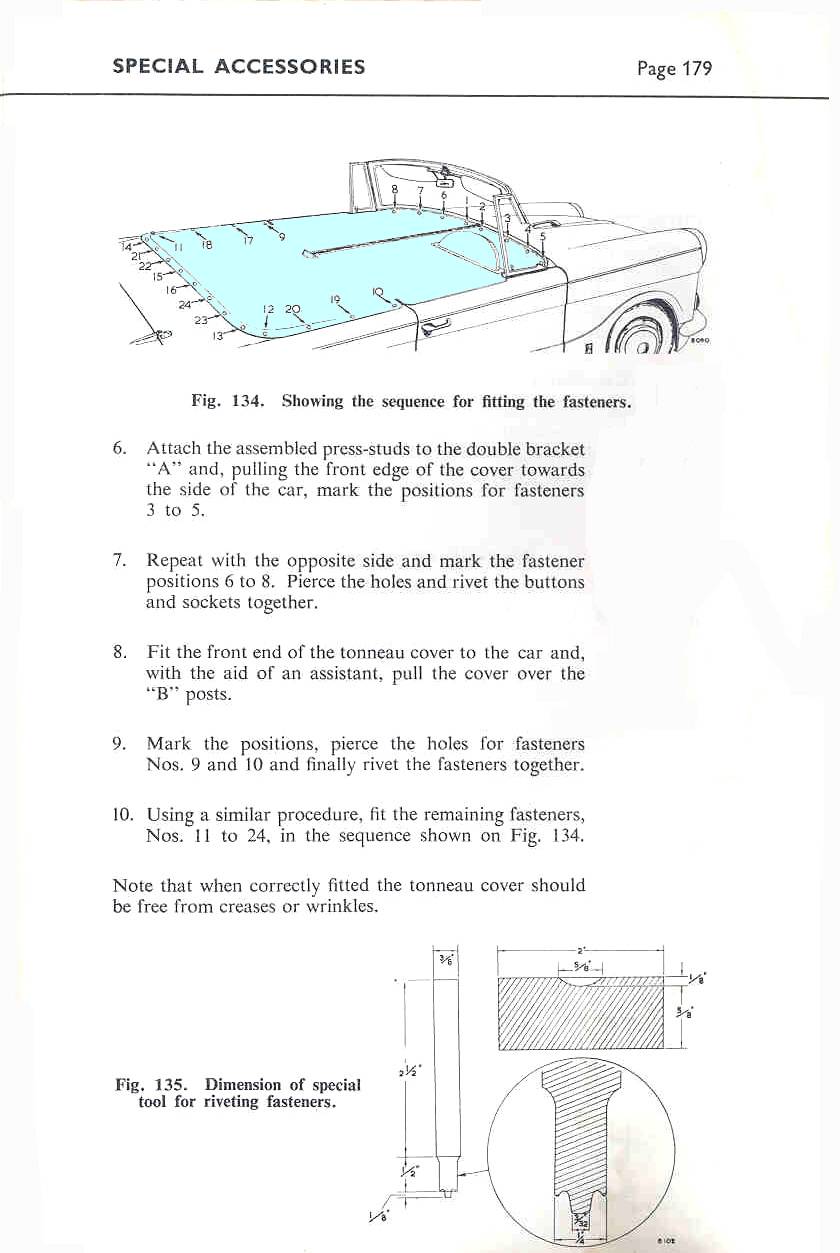

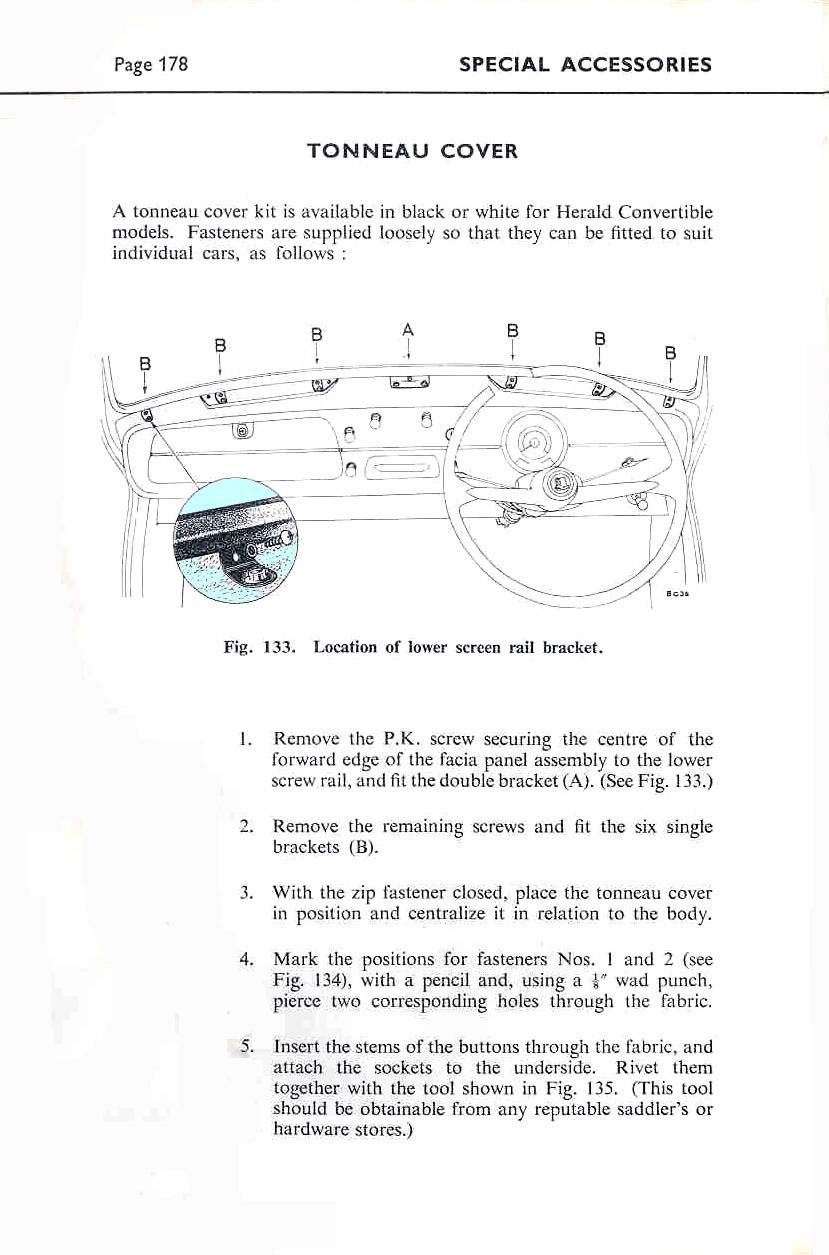

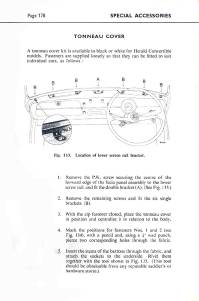

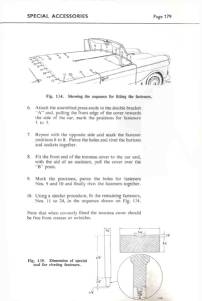

Page 1 of tonneau installation instructions; click on the image to see it full-size.Page 2 of tonneau installation instructions; click on the image to see it full-size.
