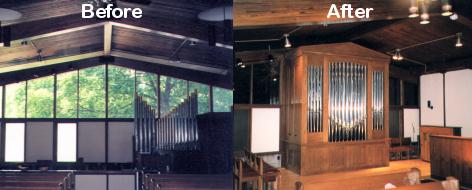

The new organ replaces the church's previous instrument, which was a 5 rank Wicks that was located to one side in the rear of the church (see photos below). It is centered in the rear of the church on a newly constructed raised wood floor, which also has seating for the choir.
All windchests are new utilizing 1 3/4" solid poplar toeboards and expansion cell electro-mechanical action. Electro-pneumatic action is used for all larger pipe actions.

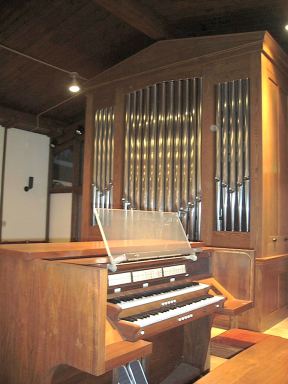

The organ case is constructed from solid red oak in thicknesses from 3/4" to 1 1/4". The Wicks console was retained, but received a complete rebuilding with new contacts, a new tilting tablet stop rail with maple faces and a new solid state combination action and coupler system.
The entire case and all winchests were constructed in our shop. All pipe voicing was done in our voicing room and on location.
GREAT - Highest section inside organ case
|8' Principal||61 pipes - 16 new polished zinc facade pipes, 45 spotted metal from Wicks|
|8' Gedeckt||61 pipes - 12 recycled wood stopped basses, 49 new capped spotted metal|
|8' Salicional||Duplexed from Swell|
|4' Octave||61 pipes - 5 new polished zinc in facade, 56 new spotted metal|
|4' Koppelflute||Prepared for future addition|
|2' Super Octave||61 pipes - New of 70% tin|
|IV Mixture||244 pipes - New of 70% tin|
|8' Trompette||56 Reed pipes revoiced from Wicks, 5 new flue pipes|
SWELL - Enclosed beneath Great in organ case
|8' Rohrflute||61 pipes revoiced from Wicks|
|8' Salicional||61 recycled Estey pipes, revoiced|
|8' Celeste||49 recycled Morey pipes, revoiced|
|4' Waldflute||61 pipes - rescaled and revoiced tapered pipes from Wicks Gemshorn|
|2 2/3' Nazard||Prepared for future addition|
|2' Doublette||12 pipes - Extension of Waldflute|
|1 3/5' Tierce||Prepared for future addition|
|1 1/3' Quint||Prepared for future addition|
|8' Trompette||Duplexed from Great|
|Tremolo||Prepared for future addition|
PEDAL - Bass pipes located at case sides, trebles with Great pipework.
|16' Bourdon||32 pipes - 12 pipes from Wicks, 20 revoiced Kilgen pipes. Stopped Wood|
|8' Principal||from Great Principal 8'|
|8' Gedeckt||Extension of Bourdon 16'|
|4' Octave||from Great Principal 8'|
|8' Trompette||from Great Trompette|
|Swell to Pedal||Coupler|
|Great to Pedal||Coupler|
